Product
High-resistance HDPE floating modules with a modular design tailored to each project.
Ready Dock modules are made with anti-static resin and an anti-slip surface, resistant to UV radiation, keeping their color and quality in salt or fresh water. The modular design adapts to the wave movements of rivers and lakes, always staying at water level despite tide or height changes. They are 100% recyclable, rust-free and do not deteriorate.
Spec sheet
Product · Assembly
Eight steps to assemble the Ready Dock modules, inner union first, then outer. No welding or special tools required.
Modules are joined and the nut and inner connector are inserted.
Modules joined together, with the nut and inner connector in place.
The inner connector is screwed in to lock the joint.
The key is inserted into the inner connector holes for tightening.
Modules are joined through the handles and the outer bolt is inserted.
The outer nut is placed onto the bolt.
The outer nut is tightened with the key.
Modules joined on the outside. Structure ready.
High-density polyethylene · Compression up to 9,100 kg/m² (Dictuc) · 100% recyclable
Product · Mooring

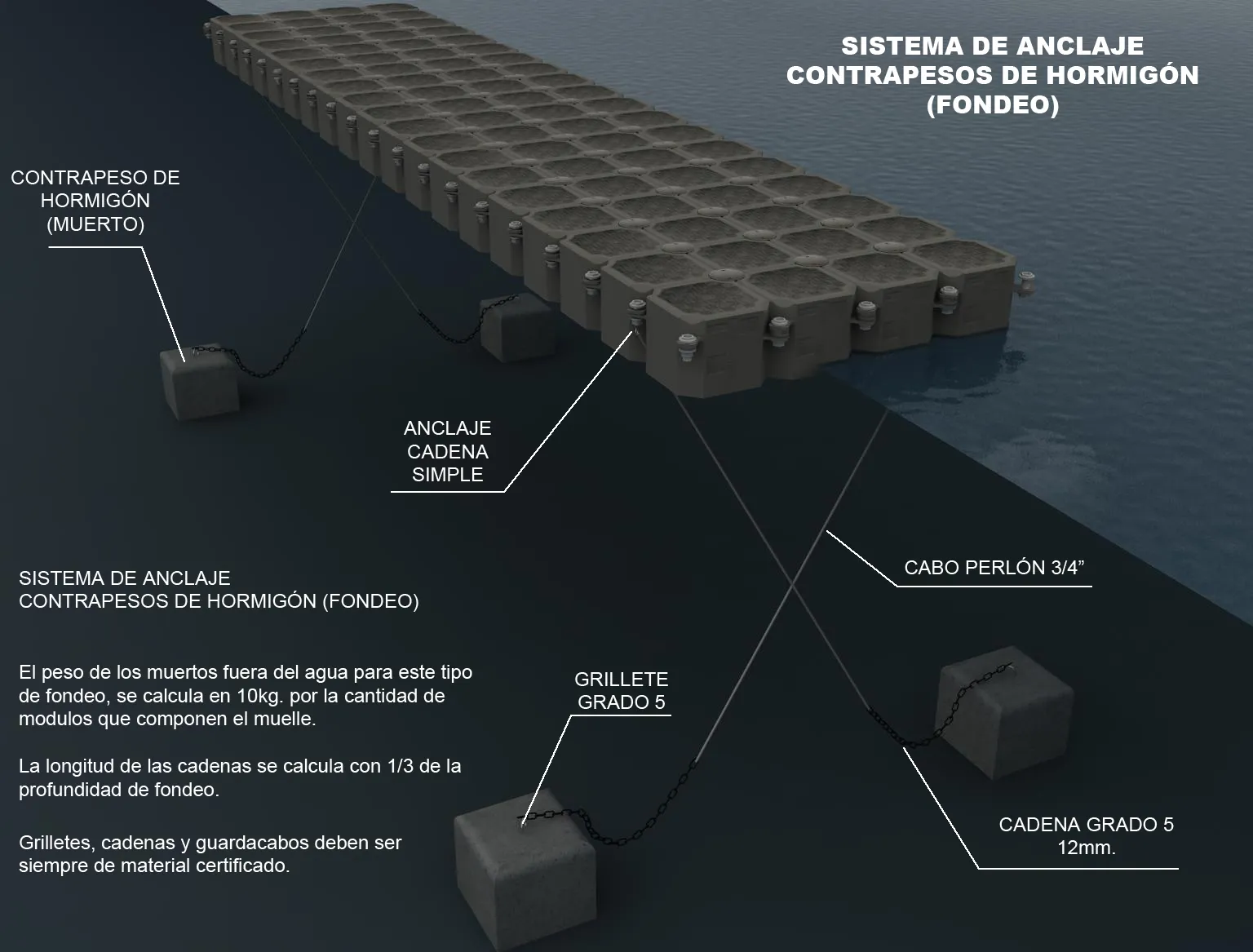

The dock is fixed to the bottom with concrete deadweights, joined by chain, shackle and perlon rope. The mooring is sized to the water depth and the number of modules.
Sized at 10 kg per module in the dock.
One third (1/3) of the mooring depth.
Shackles, chains and thimbles are always certified (grade 5 chain, 12 mm · 3/4" perlon rope).
Tool
Pick a common size or enter your dimensions to estimate modules, weight and flotation. This is an estimate; the final design is provided by our team.
Common sizes
Distributed flotation capacity: 357 kg/m². Point loads or vehicles are designed case by case.
Catalog
A complete modular system: modules, connection & hardware, mooring and safety elements. Every part is made of high-resistance, corrosion-proof polyethylene.
Line

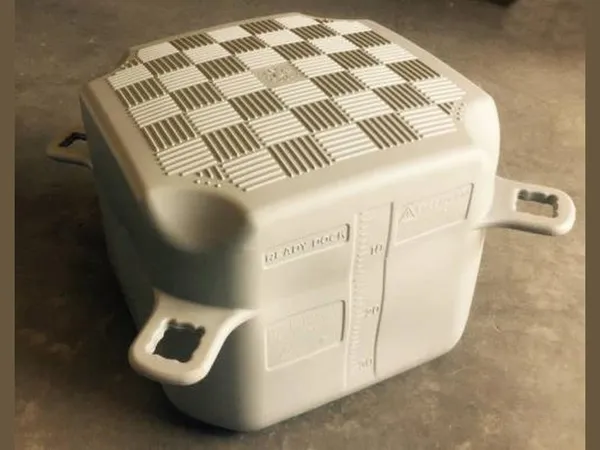

The base of Ready Dock docks. High flotation, versatility and easy assembly; its non-slip surface is safe to walk on. Each edge has a handle with a hole for module-to-module connection.
492 × 488 × 397 mm · 6,3 kg · flotación 85 kg/módulo (357 kg/m²) · HDPE alto peso molecular
Complementary modular piece that resolves angles and edges on the dock perimeter, using the same connection system as the base module.
Line

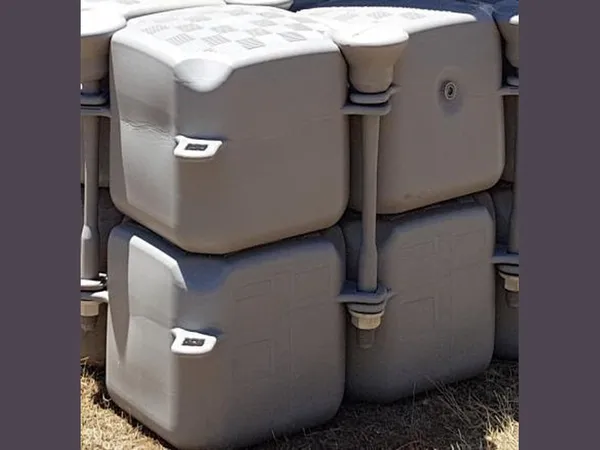

Bolt that joins the modules. The short one joins one level; the long one joins two levels, giving a double-height dock with double buoyancy and strength.
corto 265 mm · 500 g | largo 660 mm · 524 g

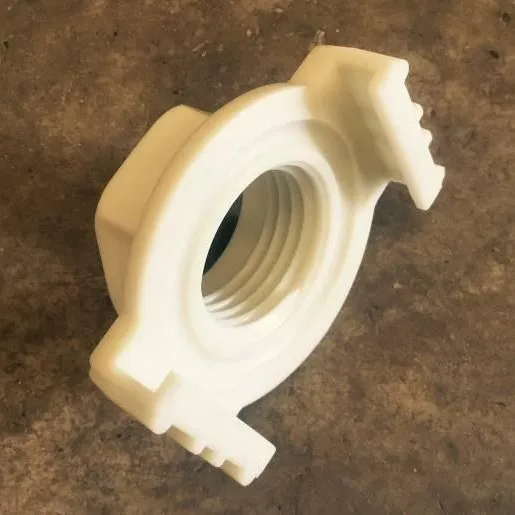

Nut where the inner connector is fastened to lock the inner union of the modules.
95 × 88 × 36 mm · 77 g
Nut placed onto the outer bolt to lock the union of the modules at the handles.
Ø 88 × 36 mm · 63 g

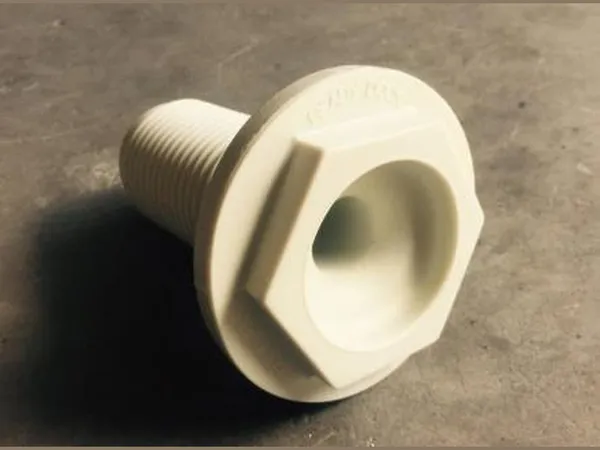

Hollow bolt that joins perimeter modules and fixes accessories: fenders, cleats, ladders, railings and anchoring parts.

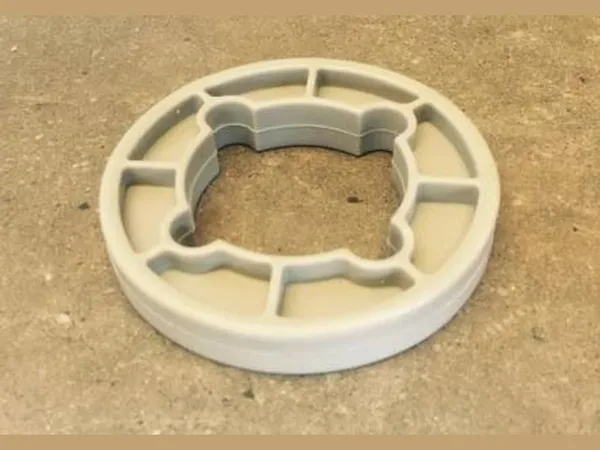

Shim that compensates for height differences between module handles when joining with outer bolts.

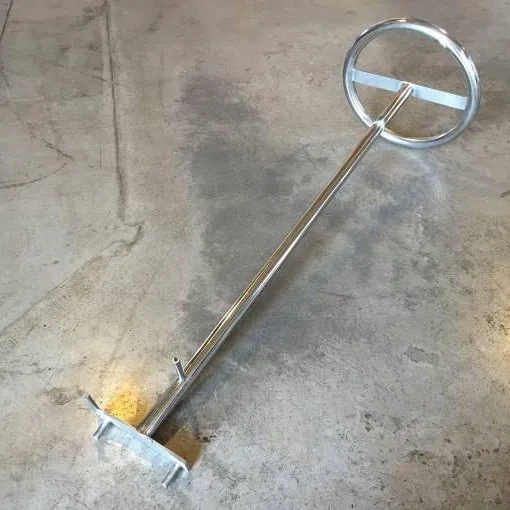

Tool to fasten and tighten the inner connectors.

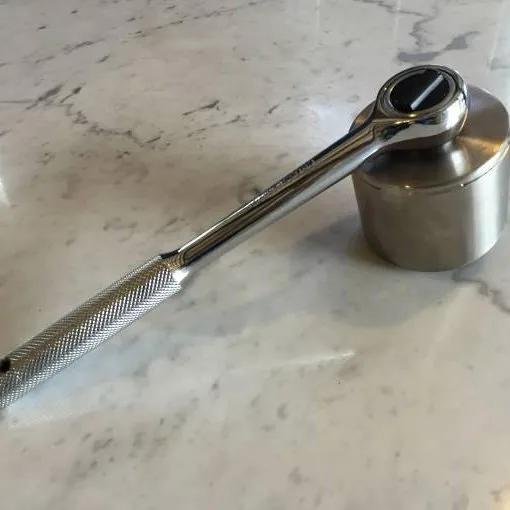

Ratchet tool to quickly tighten the outer nuts.
Line
Cushions the side impacts of vessels berthing at the dock. A long imported model handles bow impacts on frontal berthing.

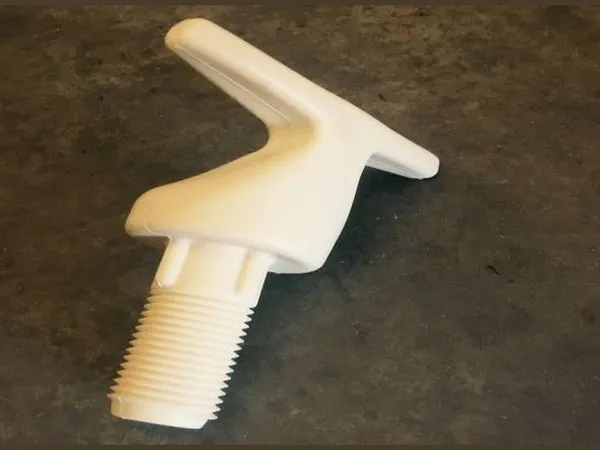

Parts to moor vessels to the dock. The metal version allows mooring of large vessels.

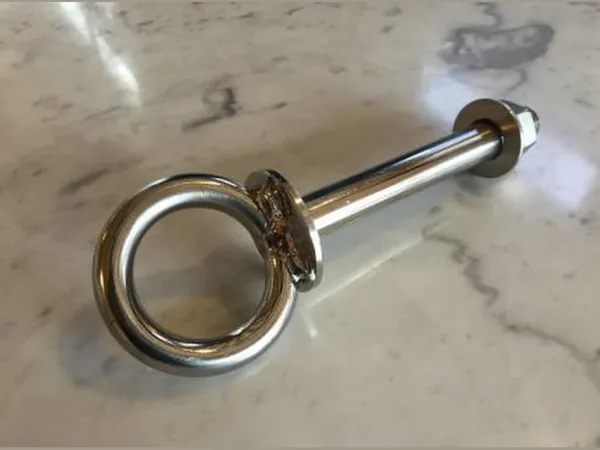

Simple ring anchor to moor the dock to dead weights, and a base to hold the cleat and moor jet-skis.
Line

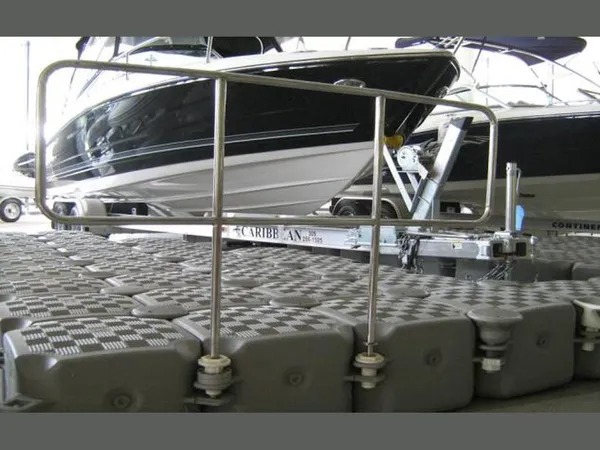

Safety railing for transit over the dock. Fixed at the lower ends to the outer bolts.
90 cm de alto · 1,50 m de ancho

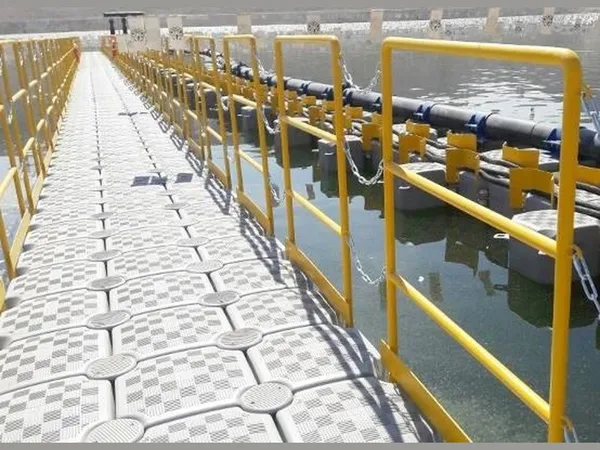

Railings with toe-board and epoxy paint that meet mining standards, to close off platforms and prevent falls into water or corrosive liquids.
1400 × 1280 mm y 1000 × 1280 mm
Four-step ladder installed on the dock perimeter, easing access to the water.

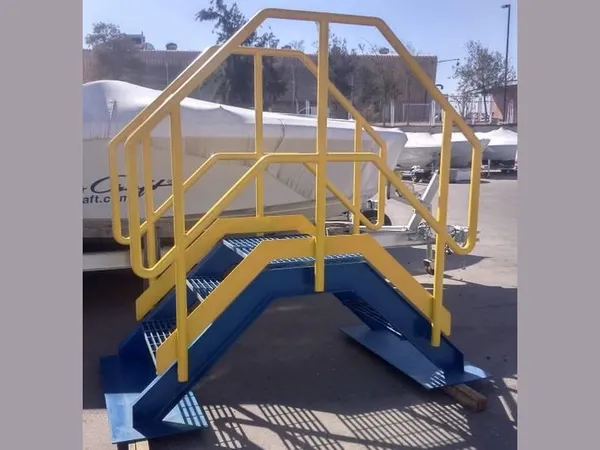

Lets workers step over water piping without tripping, adding safety on site.

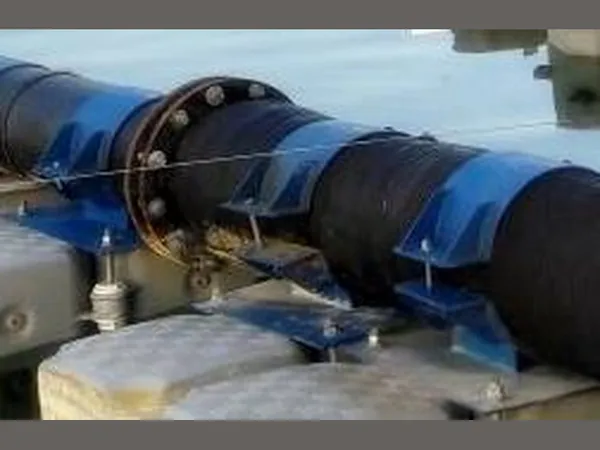

Support that fixes piping to the floating platform, preventing hose movement and misalignment.

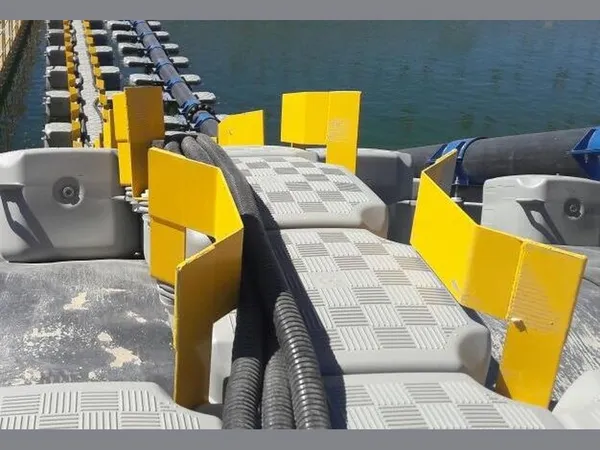

Barrier that keeps cables from falling into the water, holding a conductive line to the pumps.
